Renogy One M1
Renogy One M1
Renogy ONE M1 makes off-grid living easy with its all-in-one energy monitoring and smart living centre. Enjoy convenience and comfort with its 4” HD display, letting you monitor every compatible Renogy device in your vehicle from one screen. With the DC Home app, you can have the same system monitoring and energy management on your smartphone. Make your off-grid living convenient and comfortable with Renogy ONE M1.
KEY FEATURES
24/7 Energy Monitoring - No longer do you need to track the performance data of your LiFePO4 batteries, charge controllers, and inverters on multiple monitors. Now, Renogy ONE M1 delivers all the performance data from connected devices directly to your smart panel through Bluetooth, RS485, or RV-C communication cables. DC Home app gives you all these capabilities wherever you go right on your smartphone.
Connected Living - Directly connect a maximum of 3 DC appliances to the panel relays of Renogy ONE M1. The system gives you the flexibility to switch on/off connected appliances in multiple ways including physical switches or the DC Home app.
Worldwide Remote Monitoring - Wi-Fi connectivity uploads energy data while you’re off grid so you can monitor your system in real time, wherever you are, with the DC Home app.
SPECIFICATIONS | |
---|---|
Model: RMS-LP4-G2 | Load: ≤30V DC, 5A Max |
Wireless Communication: Wi-Fi (IEEE 802.11b/g/n 2.4 GHz); Bluetooth 2.1/4.2 and Bluetooth LE; Zigbee (IEEE 802.15.4) | Power Consumption: < 2.5W (standby) |
Touch Screen: 4 inches (480 x 480p) White backlight with adjustable brightness | Installation: Flush mounting |
Casing Material: PC+ABS V0 | Operating Temperature: -20℃ to 50℃ (-4℉ to 122℉) |
Operating Humidity: 0% to 95% RH | Operating Altitude: Less than 2000 m above sea level |
Power Supply: Rated Power 3.5W 1.Power Port: 8V DC-16V DC 2.Type-C Port: 5V DC | Connection: Zigbee (IEEE 802.15.4) |
Ports: 1.USB Type-C (5V DC) 2.RJ45 (CAN & RS485) 3. 2-pin 2.54 mm pluggable terminal block (12V DC) | Protocols: RV-C/Modbus/Zigbee 3.0 |

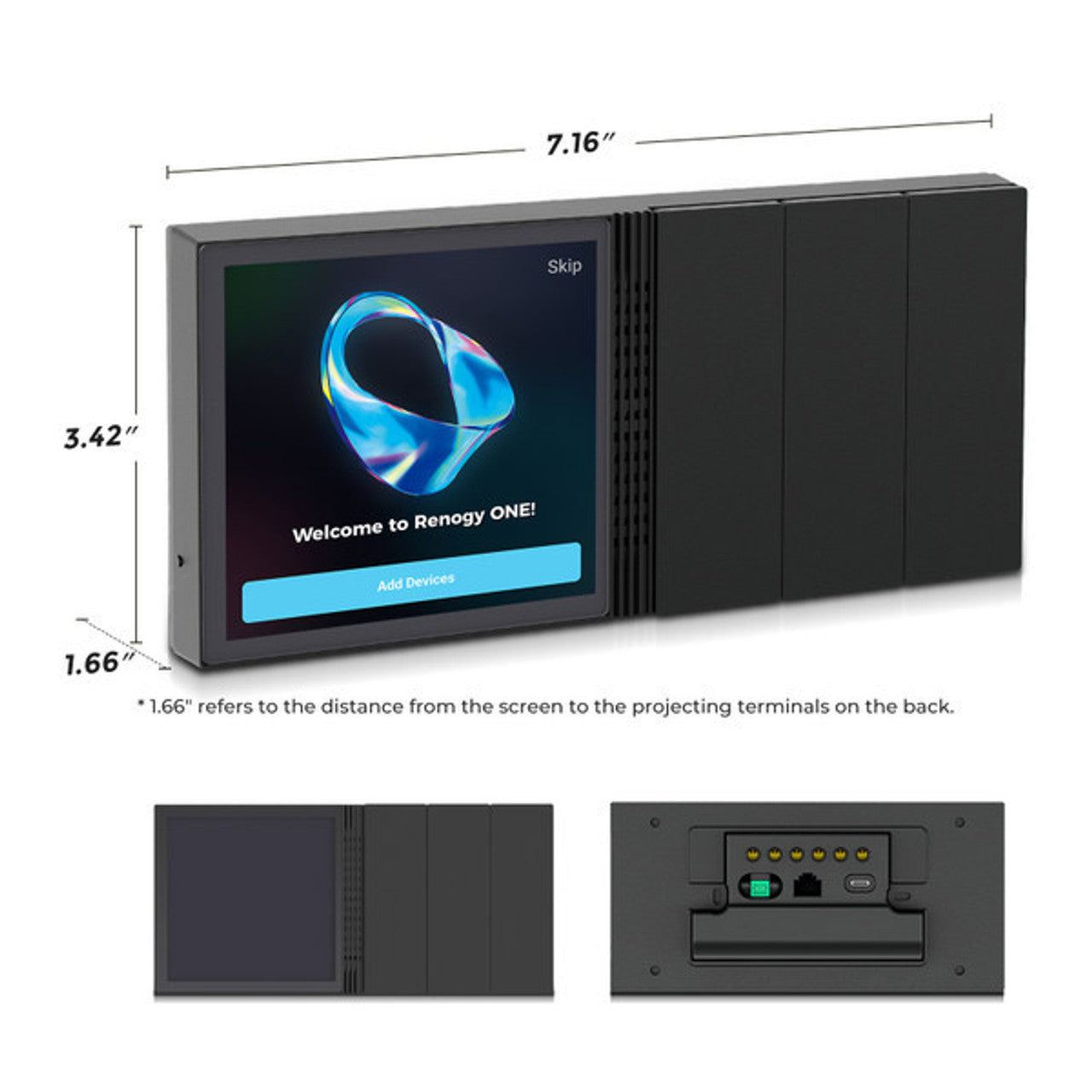

Dimension: 181.8 x 86.8 x 42.2 mm (7.16 x 3.42 x 1.66 in) | Weight: 0.63 lbs/286 g |
Warranty: 2 Years | Certification: CE, FCC: YES |
