Renogy Core Mini 12.8V 200Ah Lithium Iron Phosphate

Renogy Core Mini 12.8V 200Ah Lithium Iron Phosphate

$1,550.00 NZD
$1,550.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

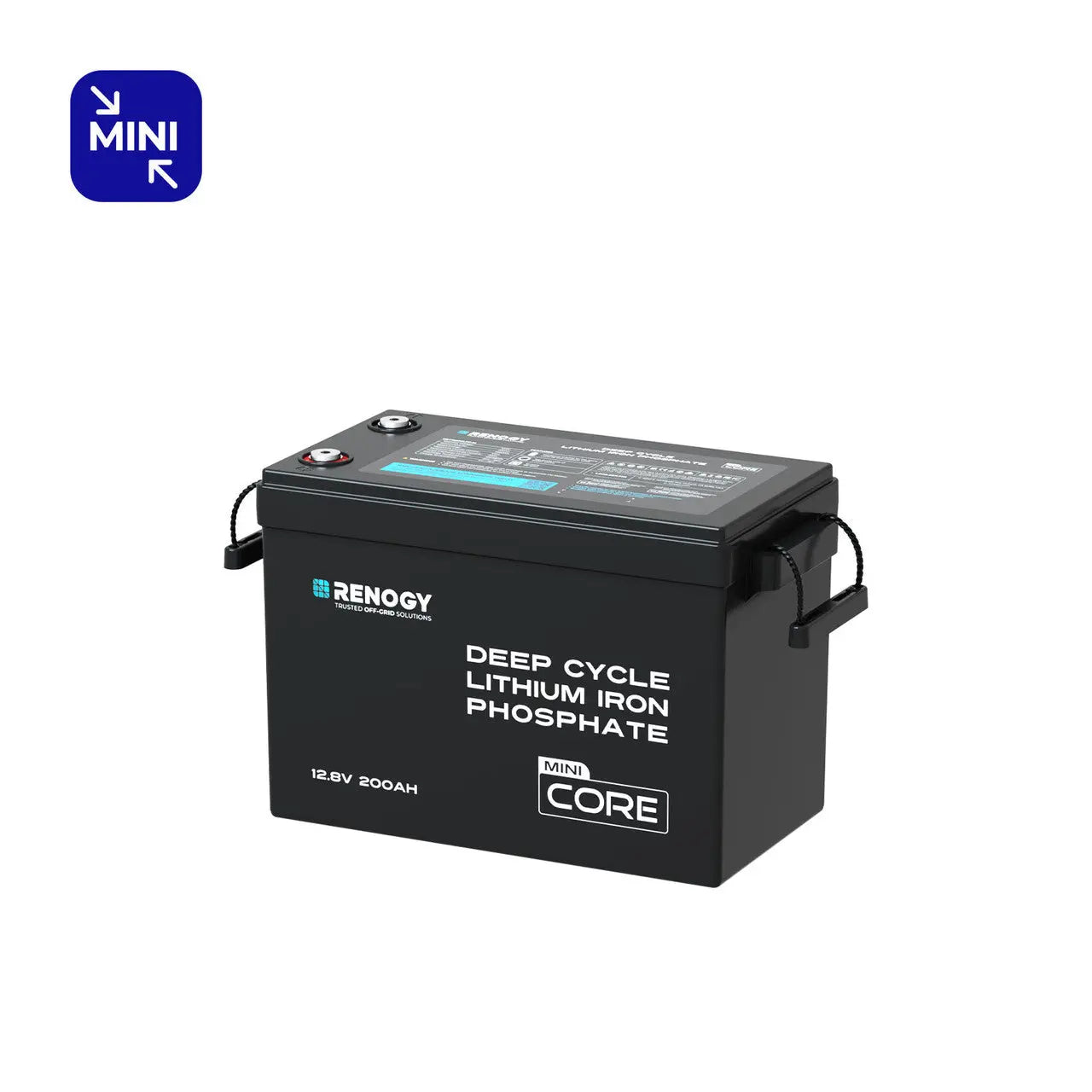

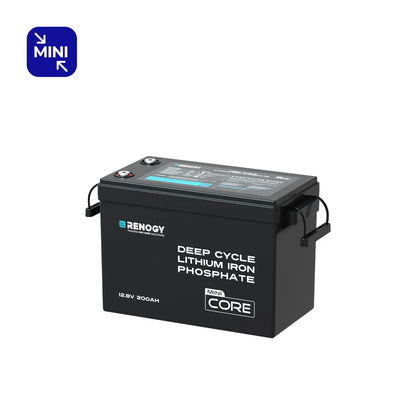

Renogy Core Mini 12.8V 200Ah Lithium Iron Phosphate Battery w/ Low-Temperature Protection

The Renogy Core Mini is a 12.9V 200w lightweight and reliable lithium battery, perfect for use with your RV, boat or solar setup.

Product Description

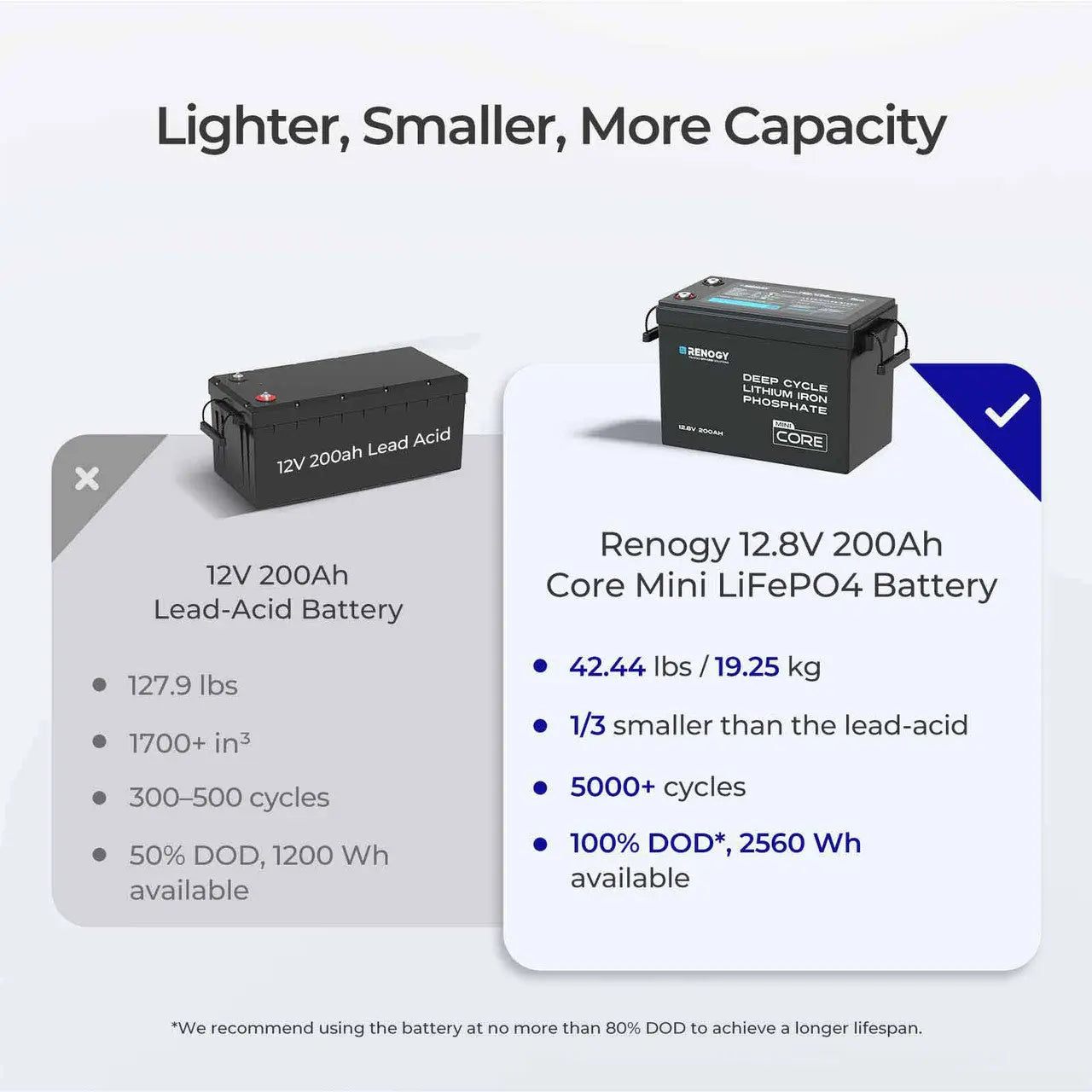

The Renogy Mini 200w is very light, weighing in at 19.25 kg and comes with IP65 protection from dust and water. It is designed with RV travel in mind as it features metal cell spacers to give it high vibration resistance.

With this battery you can connect up to four batteries in series to increase voltage
1 Battery = 12V @ 200A
2 Batteries = 24V @ 200A
3 Batteries = 36V @ 200A
4 Batteries = 48V @ 200A

Specifications

  • RENOGY MINI | 12.8V 200Ah LiFePO4 Battery Specifications

    Rated Capacity (0.5C, 25°C)

    200Ah

    Nominal Voltage

    12.8V

    Energy

    2560Wh

    Cycle Life (0.5C/1C, 25°C)

    5000 Cycles (80% DOD, 80% EOL)

    Maximum Continuous Discharge Current

    200A

    Peak Discharge Current

    380A@10s

    Voltage Range

    10V to 14.6V

    Maximum Continuous Charge Current

    100A

    Operation Temperature Range

    Charge: 0°C to 55°C

    Operation Temperature Range

    Discharge: -20°C to 65°C

    Storage Temperature Range

    -20°C to 60°C

    Operation Relative Humidity

    5% to 95%

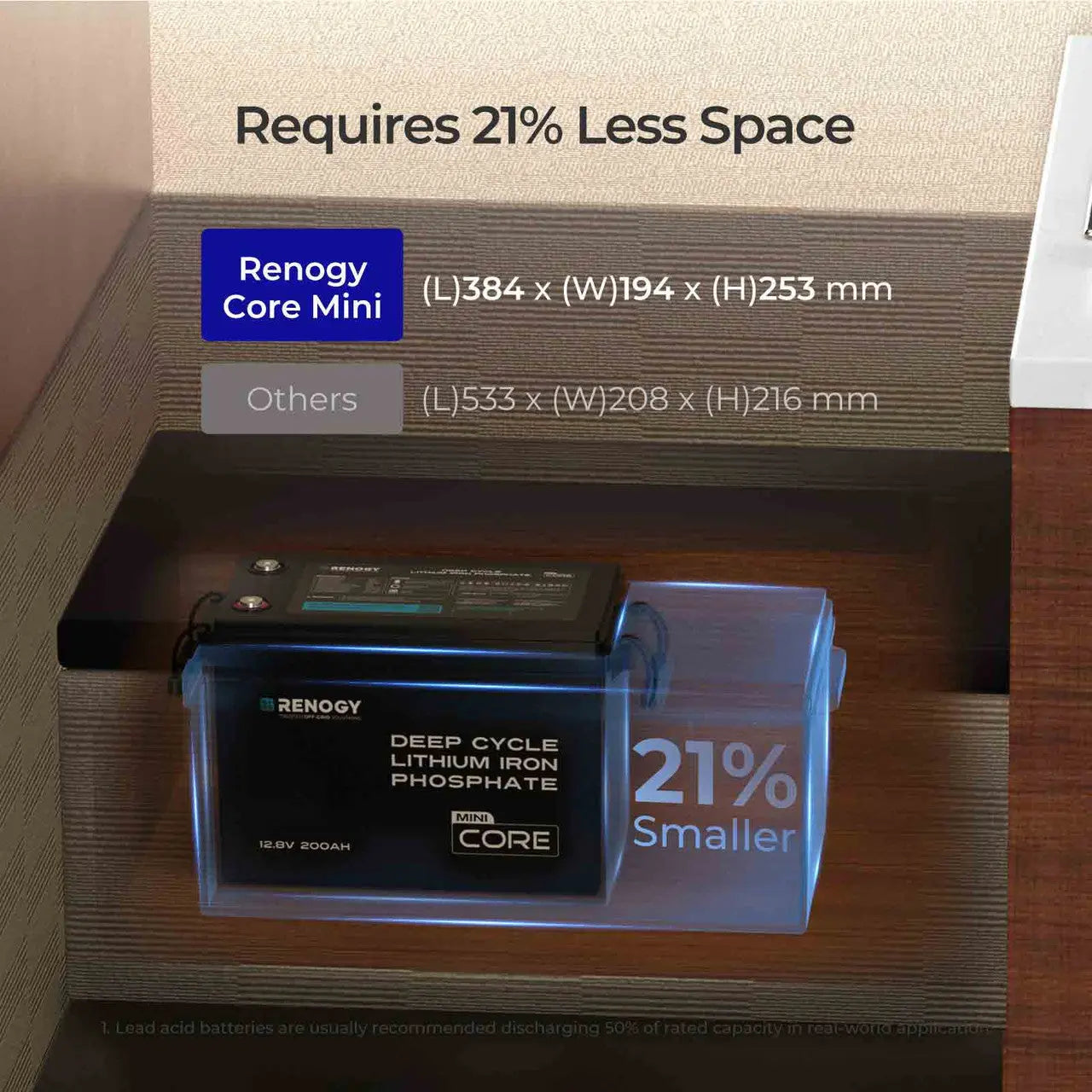

    Dimension (L x W x H)

    384×194×253 mm

    Weight

    19.25 kg

    Terminal Bolt Size

    M8×1.25×12 mm & M8×1.25×16 mm

    Protection Rating

    IP65

    Held Certifications

    MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA

    Warranty

    5-year
