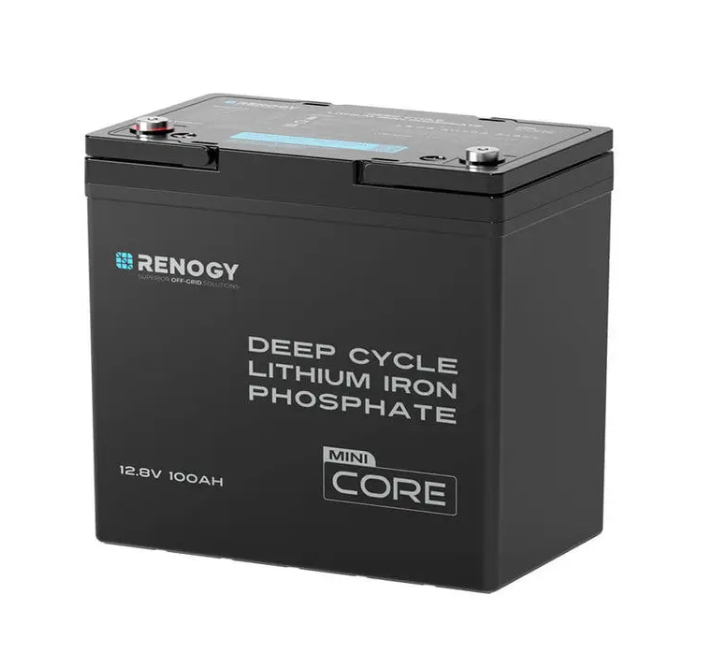

Renogy Core Mini 100Ah

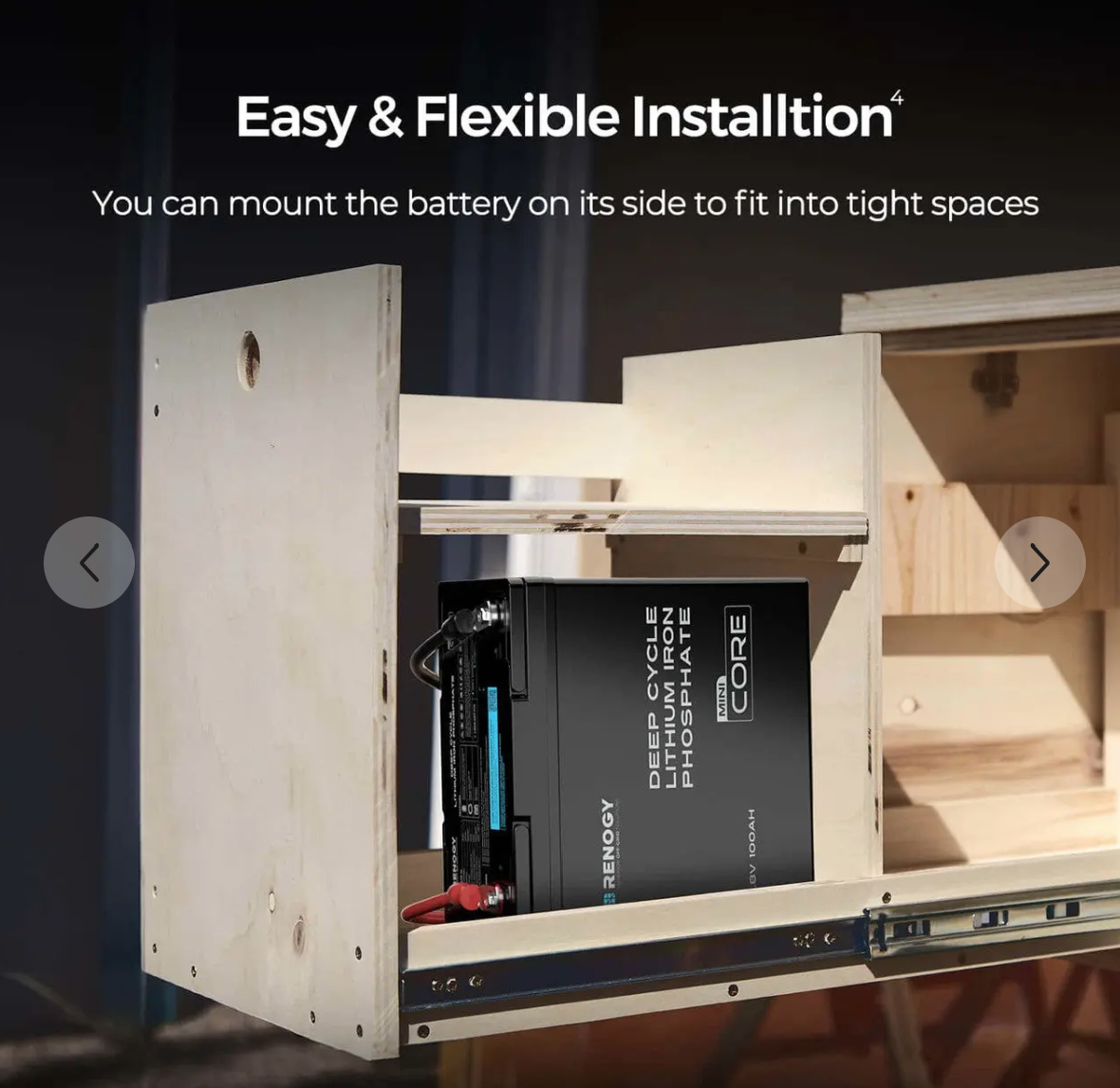

The Renogy Core Mini 100Ah is Renogy's most compact 12.8V 100Ah lithium iron phosphate battery, engineered for space-constrained installations. Measuring 229 × 138 × 213 mm and weighing just 9.9 kg, this Group 22NF battery delivers 1,280 Wh of reliable energy storage with exceptional performance. Built for durability, the Core Mini features IP65 protection and vibration resistance for demanding outdoor environments. Its low-temperature cut-off safeguards charging in freezing conditions, while flexible mounting options—including side placement—maximize installation flexibility. The battery supports up to 100A continuous charge and discharge, with a 300A peak discharge capability for 5 seconds. With 5,000 cycle life at 80% depth of discharge, this LFP battery operates across a wide temperature range: 0–50°C for charging and -20–60°C for discharging. Pair it with a Renogy 300A Battery Shunt for seamless remote monitoring and system management.

Battery Type:
Lithium Iron Phosphate (LiFePO₄)

Nominal Voltage:
12.8V

Rated Capacity:
100Ah (0.5C, 25°C)

Voltage Range:
10V to 14.8V

Maximum Charge Current:
100A

Maximum Discharge Current:
100A

Peak Discharge Current:
300A for 5 seconds

Cycle Life (0.5C, 25°C):
5000 cycles (80% DOD, 80% EOL)

Charge Temperature Range:
0°C to 50°C (32°F to 122°F)

Discharge Temperature Range:
–20°C to 60°C (–4°F to 140°F)

Storage Temperature Range:
–25°C to 65°C (–13°F to 149°F)

Operation Relative Humidity:
10% to 95%

Connection Method:
Series & Parallel (up to 4S4P)

Terminal Bolt Size:
M8 × 1.25 × 12 mm

Recommended Terminal Torque:
88.5 to 106.2 in-lbs (10–12 N·m)

Protection Rating:
IP65

Dimensions:
229 × 138 × 213 mm (9.02 × 5.43 × 8.39 in)

Weight:
9.9 kg (21.8 lbs)
