BT-1 Bluetooth Module
BT-1 Bluetooth Module
Couldn't load pickup availability
The Renogy BT-1 Bluetooth Module is for monitoring and controlling your solar charge controller, DC-DC with mppt battery charger, and smart lithium battery. Connect this RJ45-powered module to monitor data wirelessly with the Renogy DC Home app, easily making adjustments and configuration changes from the convenience of your smartphone or tablet. Make your off-grid power system smarter and keep it running at peak performance with the BT-1.
Key Features

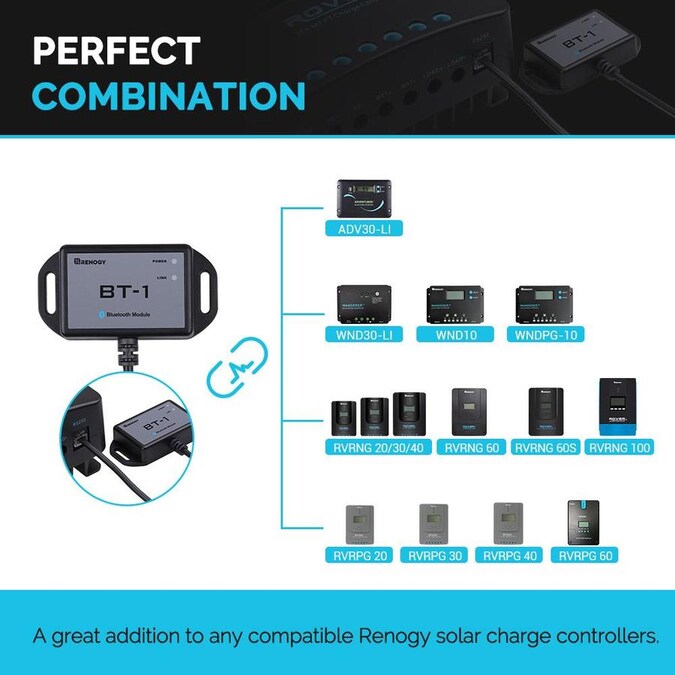

Precise Control Over Your Devices - Compatible with all Renogy RS485 communication port products include the Rover Elite MPPT Solar Charge Controller, Smart Lithium Batteries, and Dual DC-DC MPPT Battery Charger.
Real-time Insight - Get real-time and historical data via Bluetooth Module and Renogy DC Home App. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication.
User-friendly - Easily connect the Bluetooth Module to the RS485 communication port and follow the App instructions. The Bluetooth Module is powered by solar energy, and the ultra-low-power dedicated chip will allow signal range up to 25m.
SPECIFICATION
| Specifications | |
|---|---|
| Communication Protocol: RS485 | Port Type: RJ45 |
| Input Voltage: 5V or 12V | Protection Grade: IP54 |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤82ft | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Installation Dimensions: 67.3 φ3.5mm（2.66 φ 0.14in） | Operation Temperature: -4°F to 185°F (-20℃~85℃) |
| Weight: 130g (4.58oz) |
