300AH Lithium Iron Phosphate Battery

One stop for upgrade from lead-acid to lithium.

2x faster self-heating triggered at 0℃.
Support series, parallel, or series-parallel connections.
A true 200A BMS with low-temperature cut-off.
5-year limited warranty
Get Your System Built up Easier & Faster in Just One Go:
No more worries about compatibility between different components.

Extra Warmth. Extended Runtime:
With the industry's highest 200W heating elements, this 12V 300Ah LiFePO4 Battery can heat up 2X faster than other heated batteries on the market. Please ensure a stable charge current greater than 10A for each battery for initiating the self-heating.

Protections from Bumps:
We know that it always take a bumpy ride before arriving your dream destination. With that in mind, the battery comes with rugged structural design to protect components from bumping up and down on the road.

Connect in Series-Parallel:
Considering stepping up both the voltage & capacity of your system? Try connecting sets of batteries in series-parallel to yield maximum power for getting prepared for emergencies like outages.

The Renogy Difference:
Going solar is not that complicated. Renogy is here to help you build your system faster so you can roam further.

Package Included:

Core - 12V 300Ah Lithium Iron Phosphate Battery x1
Long Terminal Bolts x 2
Insulating Sleeve x 2
User Manual x 1

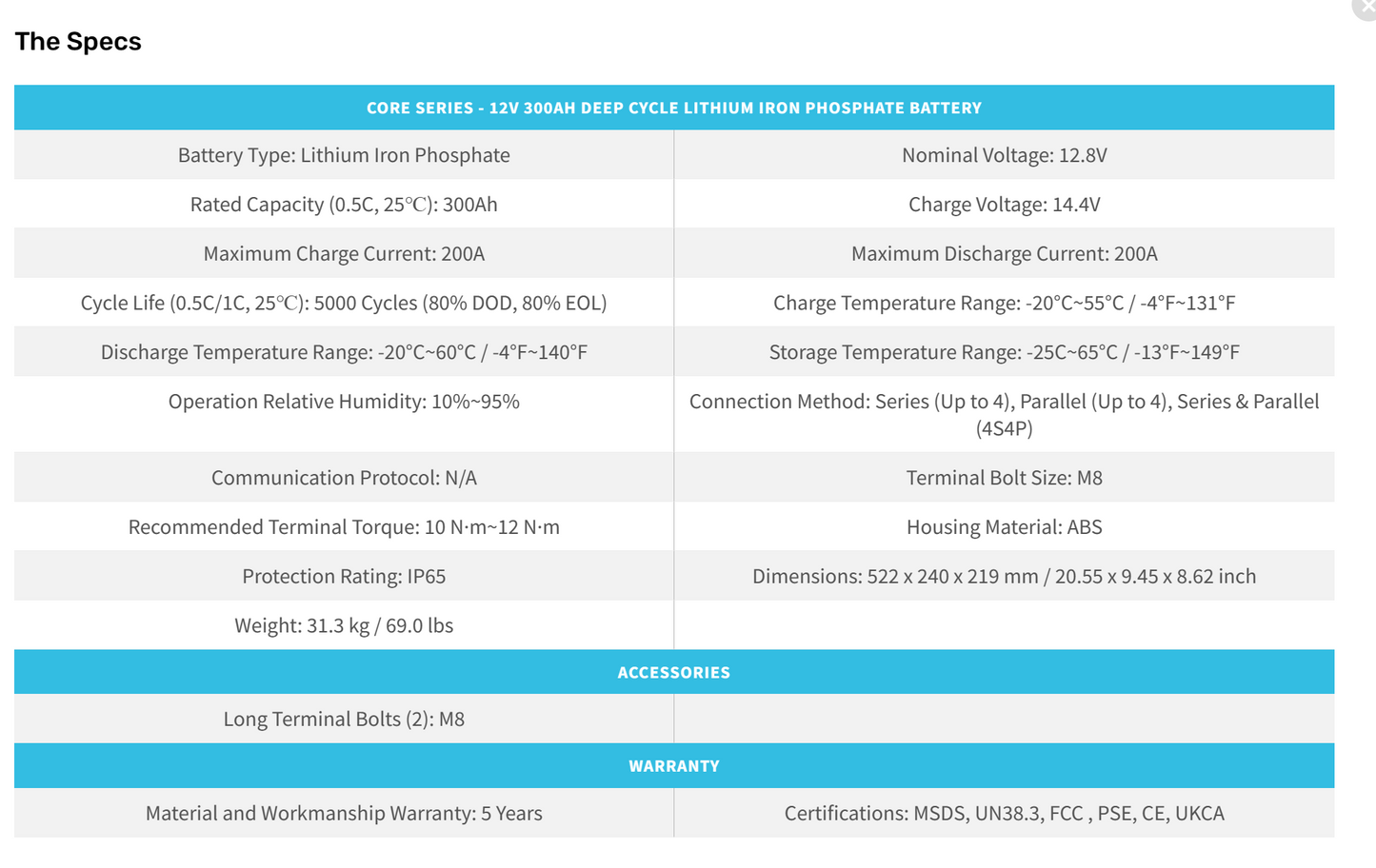

Specifications:

Battery Type: Lithium Iron Phosphate
Nominal Voltage: 12.8V
Rated Capacity: 300Ah
Charge Voltage: 14.4V
Maximum Charge Current: 200A
Maximum Discharge Current: 200A
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Charge Temperature Range: -20°C~55°C
Discharge Temperature Range: -20°C~60°C
Storage Temperature Range: -25C~65°C
Operation Relative Humidity: 10%~95%
Connection Method: "Series (Up to 4) Parallel (Up to 4) Series & Parallel (4S4P)"
Communication Protocol: N/A
Terminal Bolt Size: M8
Recommended Terminal Torque: 10 N·m~12 N·m
Housing Material: ABS
Protection Rating: IP65
Dimensions: 522 x 240 x 219mm
Weight: 31.3 kg
