200W Rigid Solar Panel
200W Rigid Solar Panel
Couldn't load pickup availability
Renogy 200W Solar Panel is designed for outdoor use with high resistance to wind (2400Pa) and snow (5400Pa). This panel provides up to 1000 Watt-hours of energy per day and is compatible with both on and off-grid systems. With 10 years of experience in designing and manufacturing solar panels, it offers an industry-leading warranty and reliability guarantee. Experience the power of nature with Renogy Solar Panel.
KEY FEATURES
Reliable Power Output - Renogy's 200W monocrystalline solar panel can provide 800-1000 Watt-hours (Wh) of electricity per day (depending on sun availability). Guaranteed positive output tolerance (0-3%).
High Efficiency - Built-in bypass diodes minimize power drop caused by shade. Ensure performance in low-light environments.
Rugged Structure - Corrosion-resistant aluminium frame, advanced encapsulation material, pre-installed corner protectors. Back up your adventures with enhanced stiffness.

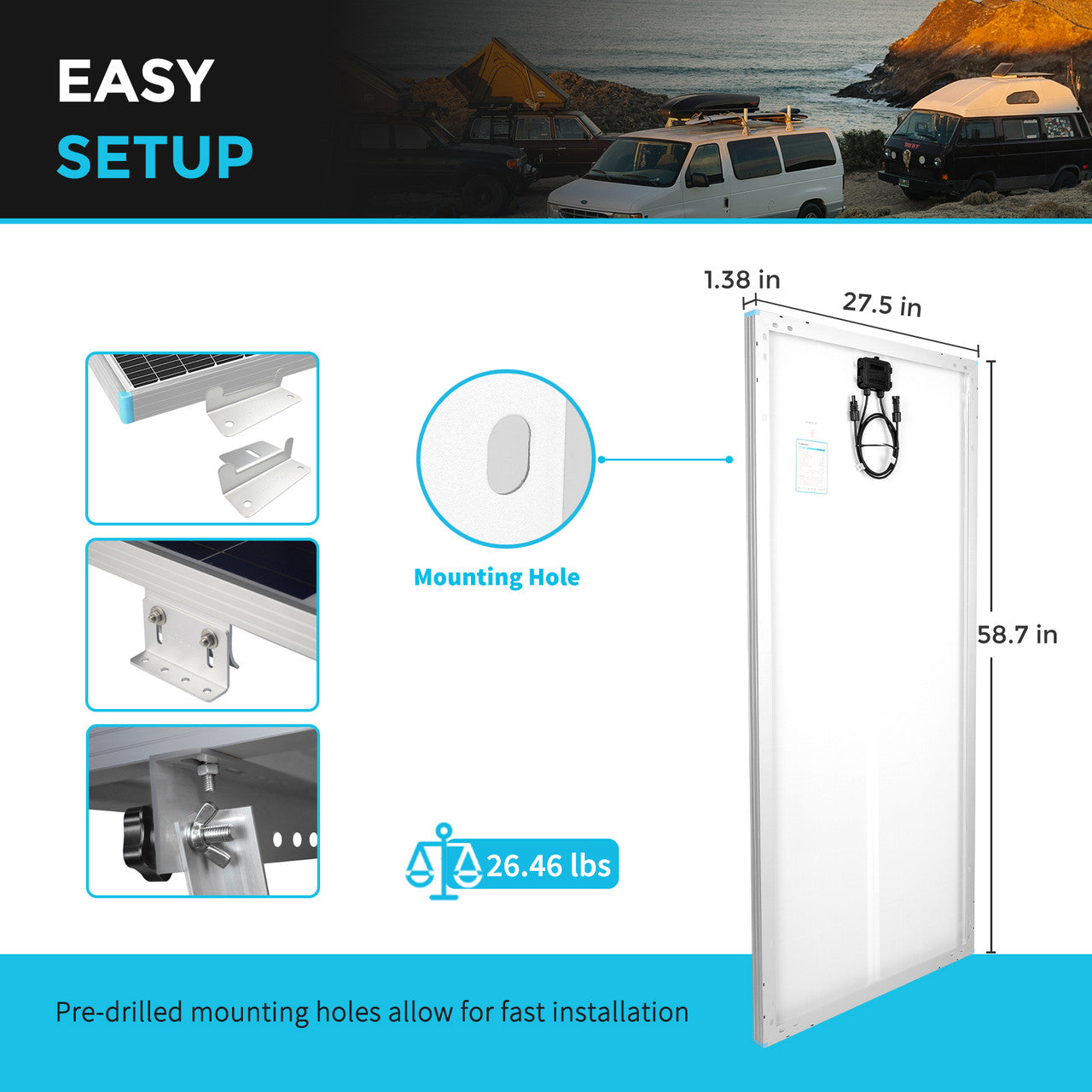

Easy Installation - Pre-drilled holes on the back frame allow for fast mounting and securing. Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.
Weatherproof - IP65 junction box provides complete protection against dust and low-pressure water jets. Withstand high winds (2400Pa) and snow loads (5400Pa)
| Specifications | |
|---|---|
| Electrical | |
| Max Power at STC: 200W | Open Circuit Voltage: 23V |
| Short Circuit Current: 11.05A | Optimum Operating Voltage: 19.2 V |
| Optimum Operating Current: 10.42A | Module Efficiency:19.2% |
| Cell Efficiency:22% | Maximum System Voltage:600 VDC UL |
| Maximum System Voltage: 600 VDC UL | |
| Mechanical |
|
| Front Glass: Tempered Glass 0.13 in (3.2 mm） | Dimensions: 58.7 x 27.5 x 1.38 in (1491 x 699 x 35mm) |
| Weight:26.46 lbs (12kg) | Number of Cells:68((2+2)*17) |
| Cell Type: 166 | Frame: Anodized Aluminium Alloy |
| Connectors:MC4 Solar Connectors | Panel Leads (Pair)：13 AWG (2.6 ft long) |
| Fire Rating: Class C | |
| Thermal Characteristics | |
| Operating Temperature： -40°F to 194°F | Nominal Operating Cell Temperature (NOCT)：45±2°C |
| Temperature Coefficient of Pmax：'-0.37%/°C | Temperature Coefficient of Voc：'-0.28%/°C |
| Temperature Coefficient of Isc：0.048%/°C | |
| Solar Connectors | |
| Rated Current:35A | Maximum Voltage:1000V |
| Maximum AWG Size Range:12AWG | Temperature Range: ﹣40℃ ～ +90℃ |
| IP Rating: IP68 | |
| Junction Box | |
| Junction Box: IP65 | Diode Type:20SQ045 |
| Number of Diodes:2 Diode(s) | Output Cables:13 AWG (79cm long) |
