The Renogy 100Ah Lithium Battery w/ Bluetooth is designed for the drop-in replacement of deep-cycle lead-acid batteries with its standard BCI group size. Weighing only half of the lead-acid counterparts, the 100Ah lithium battery can be safely discharged to 100% DOD (Depth of Discharge), delivering twice the energy of an equivalent lead acid battery.
Manufactured with automotive grade battery cells, the battery features the highest safety standards and an extended cycle life. Hosting intelligent software, the advanced BMS (Battery Management System) provides comprehensive protection to the 100Ah lithium battery. The built-in Bluetooth module enables remote monitoring on mobile devices in real time.
KEY FEATURES
Uncompromising Quality - State-of-the-art battery cells ensure a lifespan of more than 2000 cycles, 100A continuous discharge current, and a wide operating temperature range.
Easy Upgrade - Upgrade to lithium batteries seamlessly with standard BCI group size but a greater energy density, a deeper discharge capability, and a faster charging speed.
Reliable BMS System - The state-of-the-art battery management system (BMS) with high-performance dual-processors provides short circuit, over charging and over-temperature protection while maintaining a balanced voltage across all cells.
Auto-balancing Function - Easily connect multiple batteries in parallel with the auto-balancing function, improving the average charging efficiency for your batteries in the long term.

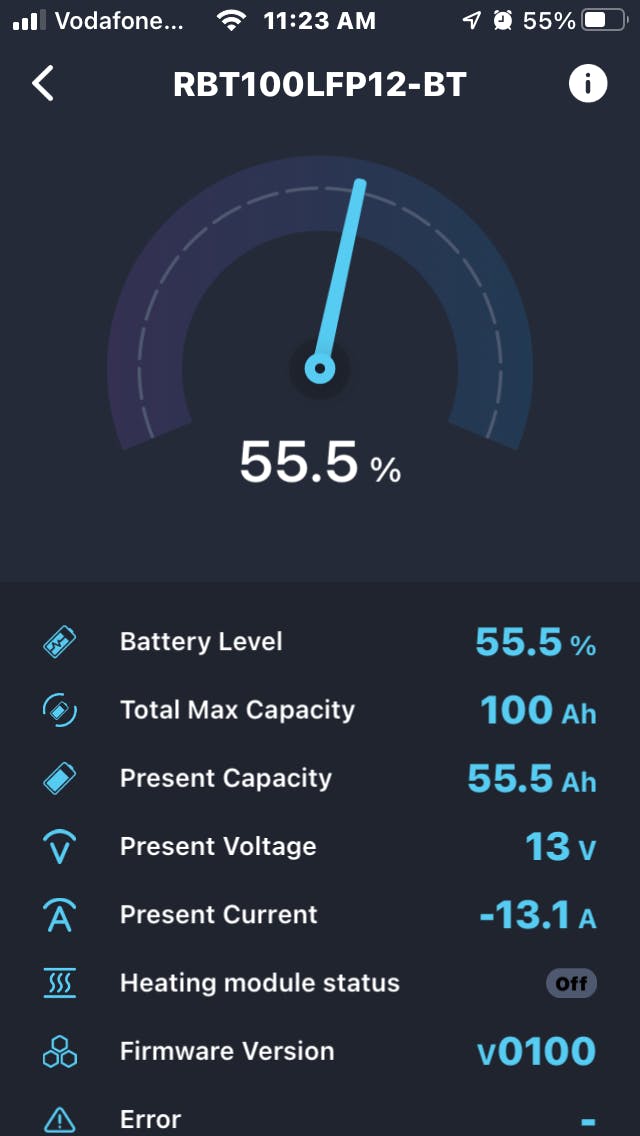

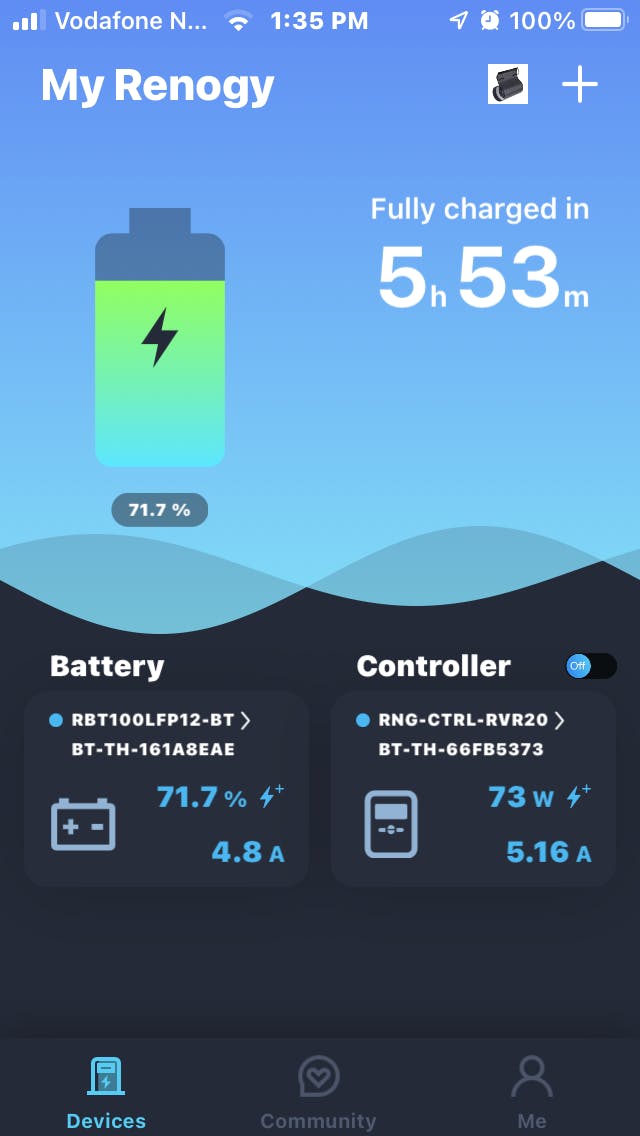

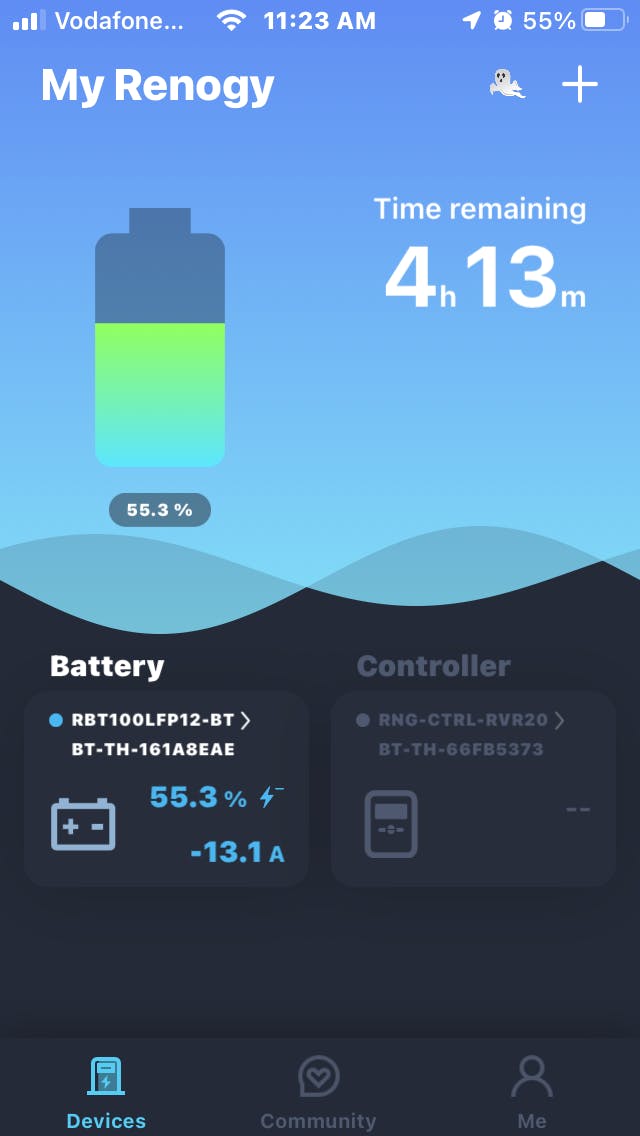

Real-time Monitoring - Monitor the battery operation status on your smartphone in real time with the built-in Bluetooth module.
Notes:
Avoid stringing the battery in series; connect multiple batteries of the same manufacturer and model in parallel, limited to eight. Fasten all cable connections to the recommended specs to secure a strong connection between the cables and terminals. Ensure that parallel batteries have similar voltage levels in order to avoid activating the over-current protection.
SPECIFICATION
| RENOGY 12V 100AH SMART LITHIUM IRON PHOSPHATE BATTERY |
| Operation Specifications |
Mechanical Specifications |
| Rated Capacity |
100 Ah |
Dimensions |
12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm |
| Nominal Voltage |
12.8 V |
Weight |
28.7 lbs. / 13.0 kg |
| Voltage Range |
10~14.8 V |
Charge Temperature |
32~131°F/ 0~55°C |
| Cycle Life (0.5C, 25℃) |
80% DOD 2000 Cycles |
Discharge Temperature |
-4~140°F/ -20~60°C |
| Maximum Continuous Charging Current |
50 A |
Protection Rate |
IP65 |
| Maximum Continuous Discharging Current |
100 A |
Communication Port |
Modbus |
| Standard Operation Temperature |
25℃±5℃ |
Certifications |
| Storage Temperature |
-13~149℉ / -25~65℃ |
UN38.3 |
YES |
| Connection Method |
Parallel (Up to 8) |
MSDS |
YES |
| |
|
FCC |
YES |
