100W Flexible Black Solar Panel

100W Flexible Black Solar Panel

$264.00 NZD
$264.00 NZD
Sale Sold out
Shipping calculated at checkout.

This 100W Monocrystalline Solar Panel from Renogy's Black Division is lightweight yet highly efficient (PERC). Its frame is crafted with a lightweight substrate and laminate for outdoor use, and it is ideal for off-grid solar systems, including RVs and boats. Additionally, the panel utilizes half-cut cell technology to maximize performance and power generation efficiency, and comes with pre-drilled holes, connectors, and a junction box for easy installation.

Key Features

Half-Cell & Bypass Diodes - Higher wattage output by reducing internal resistance. Better resistance to hotspot effect. Consistent solar conversion during accidental shading.

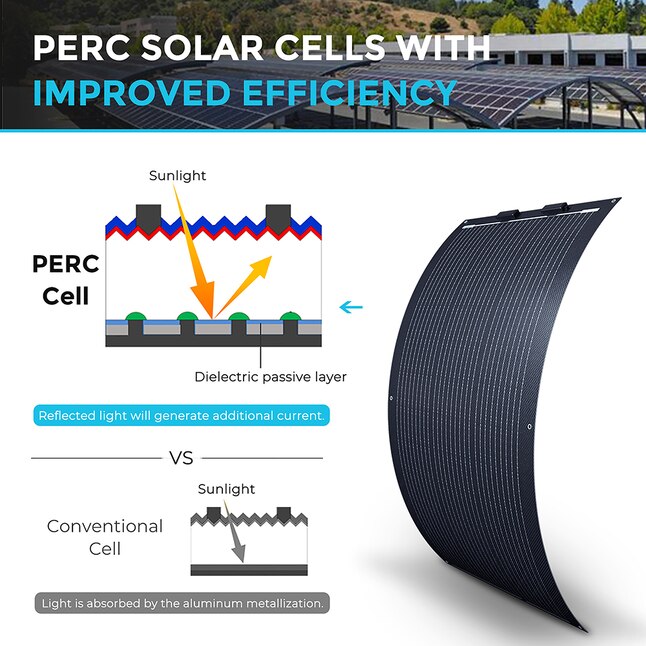

PERC Cell - Reflect sunlight back into the solar cell and achieve a better conversion rate of 22%.

Manufacturing - ETFE surface and 9 bus-bars cells help enhance light transmittance and improve the conductivity of the solar panel.

Flexible for Different Surfaces - Renogy 100W flexible panel is bendable up to 240° and weighs 50% lighter than rigid panels, making it easy to carry and install. Furthermore, an extra composite material layer is embedded inside for increased durability and flexibility.
Built to Endure Harsh Weather - This Renogy Solar Panel can provide an average of 500 Watt-hours of electricity per day (depending on sun availability). Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind load. The IP67 rated waterproof junction box and solar connectors ensure that water and dust will not enter during extended outdoor use.

Easy Installation - No Worries about Drilling or Damage. It can be attached to your yacht or RV using silicone adhesive or mounting tape, eliminating your concerns about drilling or damage.

SPECIFICATION

Built-in Components
Black Division 100W Lightweight Monocrystalline Solar Panel Output Cables: 12 AWG (2.3ft per cable)
Cell Type: PERC Monocrystalline (6.5 x 3.3 in) Number of Cells: 36 (12 x 3)
Junction Box: IP 67 Fire Rating: Class A
Specifications
Maximum Power at STC: 100W Module Efficiency: 15.7%
Optimum Operating Voltage (Vmp): 19.4V Open-Circuit Voltage (Voc): 23.5V
Optimum Operating Current (Imp): 5.20A Short-Circuit Current (Isc): 5.51A
Operating Temperature:  -40℃ to 80℃ (-40℉ to 176℉) Maximum Series Fuse Rating: 15A
Maximum System Voltage: 600V DC Rated Current (MC4 Solar Connectors): 35 A
Weight: 2.4 kg / 5.3 Lb Dimensions: 1093.0 x 582.0 x 20.5 mm (43 x 22.9 x 0.8 in)
Maximum AWG Size Range (MC4): 10 AWG Certifications: CE, ISO
Material and workmanship warranty: 5 years Performance：5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
