The perfect addition to any off-grid system, whether for a van or a cabin, the Renogy 1000W Pure Sine Wave Power Inverter acts as a DC to AC converter that allows you to power your household appliances. Unlike modified sine wave inverters, this 1000W inverter is a pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate tools, fans, lights, and other electronics without interference.
This inverter can also function as a UPS (uninterrupted power supply) from mains with the AC priority switch function enabling the inverter to automatically switch (within 50ms) from the mains (AC) to the battery (DC) and vice versa when you have a mains power outage.
KEY FEATURES 1. Electronic overload protection with automatic shutdown. 2. Built-in internal backup DC fuse provides added safety. 3. Low battery voltage protection with automatic shutdown. 4. Over temperature protection with automatic shutdown. 5. Output short circuit protection.
SPECIFICATION
The following are the minimum battery quantities to operate Renogy power inverters. This is ONLY for 12V applications.

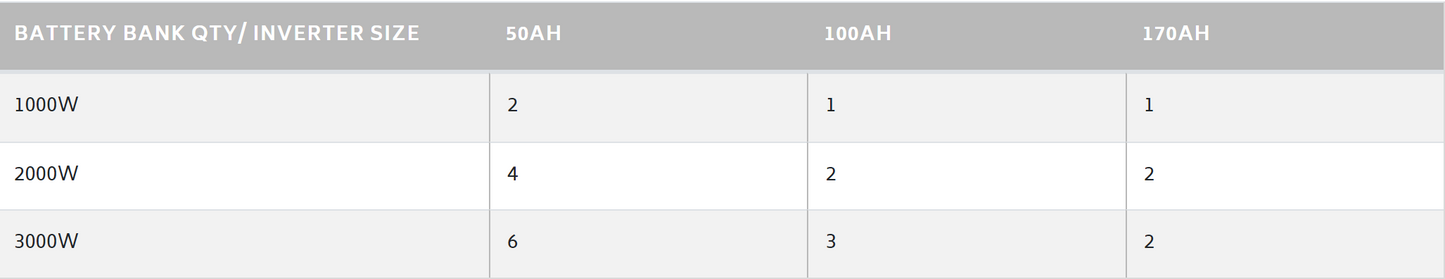

BATTERY BANK QTY/ INVERTER SIZE
50AH
100AH
170AH
1000W
2
1
1
2000W
4
2
2
3000W
6
3
2
1000W 12V PURE SINE WAVE INVERTER
Continuous Power: 1000W
Surge Power (Peak Power): 2000W
Input Voltage: 12VDC
Output Voltage: 220VAC±10
Input Voltage Range: 11-16Vdc
Static Current: < 1A
Output Frequency (Nominal): 50Hz±0.3
Output Wave Form: Pure Sine Wave
Low Voltage Shutdown: 10Vdc
Recover from low voltage protection
High Voltage Shutdown: 16.3Vdc
Battery supply & AC main transfer time within 50ms
